TrueView 625

TrueView 625 3D Imaging System with Three Cameras

TrueView 625

Based on the Riegl mini-VUX 1, similar to our TrueView 655/660, with triple cameras TrueView 625 is where price and performance meet. In addition, the TrueView 625, like all 600-series payloads, is NDAA-compliant. This is the most affordable high-end system combining ​high accuracy and precision in a budget friendly package.

PRODUCT SPECIFICATIONS

Data Collection

LIDAR + Imagery

LiDAR Scanner

RIEGL miniVUX-1UAV

LIDAR Beams/Returns

Up to 5 per outgoing pulse

LiDAR Range - usable

100 m for targets with > 20% reflectivity​

Positioning and Orientation System​

Applanix APX-15

Pulse Repetition Rate

100 kHz​

Accuracy

Better than 5 cm, RMSE​

Precision

Better than 2.5 cm at 1 σ ​

Camera Sensor

3 Sony IMX-183: 1”, 20 MP, RGB -> 60 MP per payload​

Mass

2.4 kg

WHAT'S IN THE BOX:

HARDWARE

  • TrueView 625 3D LiDAR Payload

ACCESSORIES/PARTS

  • USB Thumbdrive

  • GNSS Antenna

  • Sensor Hardcase

  • Accuracy Star

SOFTWARE

SUPPORT

  • 1 year of hardware and software support

  • 2 days of training included

INTEGRATIONS


LP360 Drone

Drone LiDAR and photo processing workflow made simple

Use LP360 Drone for

  • Intuitive workflow

  • Multi-flight import and processing

  • GIS interface allowing combination with other geospatial data

  • Powerful point cloud visualization with multiple and synchronized windows



LP360 Photo

We have integrated directly into our drone mapping processing software, LP360 Drone, a Photo engine to produce fast backdrop orthophotos for your LiDAR project.

LP360 Photo is the LP360 Drone add-on for Ortho mapping:

  • Rapidly create your orthophoto backdrop in a completely integrated workflow

  • Efficient fast processing leveraging the LiDAR data with the photos?

LP360 Photo additional features:

  • Export photo package to your 3rd party Photogrammetry software

  • Support most common 3rd party sensors (DJI Mavic 3E, DJI Phantom 4 RTK and DJI Zenmuse P1)

LP360 Strip Align

Data can exhibit small geometric inconsistence, especially when combining data from multiple flights. BayesMap StripAlign for LP360 Drone detects and corrects these errors via an application of sensor-specific mathematical modelling. StripAlign is a fully automated process with no need for users to set project-specific “tuning” parameters or to move in and out of the LP360 Drone processing environment – press a button and it works!

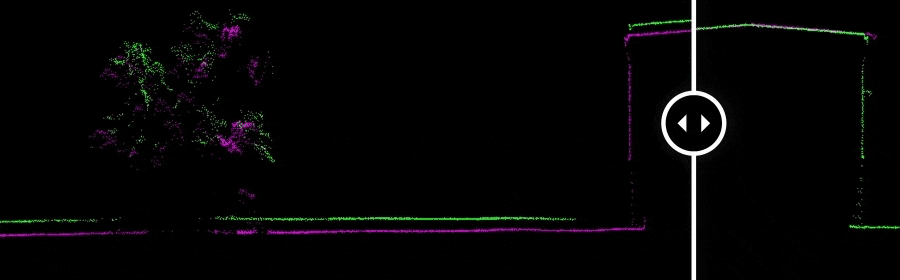

Image Exaggerated to Display StripAlign Effect

LP360 3D Accuracy

Automated horizontal and vertical checks remove the need for manual interaction

Use 3D Accuracy for:

  • Automatically transform your check point coordinates into you project coordinates including datum and epoch

  • “AutoTarget” – Automatically find a 3D target on a drone dataset

  • Calculation of correction for any 3D target

  • Seamless workflow to apply the correction on the point cloud

  • Use with ground control equipment

DRONE PLATFORMS

Our TrueView 3D Imaging Sensors were designed as a lightweight payload to allow flexible integrations on numerous drone platforms. We have worked with several drone providers to provide customers the complete drone mapping solution they are looking for. Don't see the company you're looking for, contact our team and we can discuss custom integrations!
